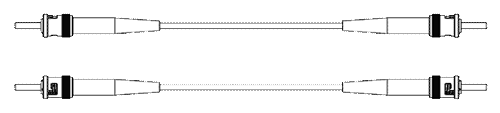

ST/PC Fiber Patch Cables
Twist-lock bayonet coupling mechanism which ensures quick, highly repeatable, low-loss connections
Simplex, duplex, and multi-fiber assemblies in standard and custom configurations
Singlemode and Multimode
PC finish
Compliant with Telcordia GR-326-CORE specification
"...Developed by AT&T, the ST connector (for Straight Tip) has been a perennial favorite for its termination simplicity and low cost."
ST Specifications
|
Singlemode (typical) |
Singlemode (maximum) |
Multimode (maximum) |
Insertion Loss |
< 0.15 dB |
< 0.30 dB |
< 0.30 dB |
Return Loss |
> 55 dB |
> 50 dB |
> 25 dB |
Operating Temperature |
-40°C to + 80°C |
-40°C to + 80°C |
-40°C to + 80°C |
Results included for each serialized assembly |

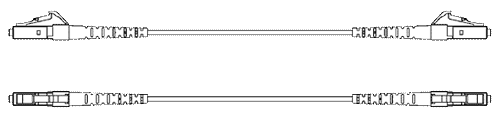

LC Patch Cables
RJ-45 style housing with push-pull coupling mechanism which allows easy disengagement in dense spaces
Small Form Factor - half the size of standard connectors
Simplex and duplex assemblies available in standard and custom configurations
Singlemode and Multimode
PC Finish
Compliant with Telcordia GR-326-CORE specification
"...A small form factor ceramic based connector developed by Lucent."
LC Specifications
|
Singlemode (typical) |
Singlemode (maximum) |
Multimode (maximum) |
Insertion Loss |
< 0.30 dB |
< 0.30 dB |
< 0.30 dB |
Return Loss |
> 65 dB |
> 55 dB |
> 25 dB |
Operating Temperature |
-40°C to + 80°C |
-40°C to + 80°C |
-40°C to + 80°C |
Results included for each serialized assembly |

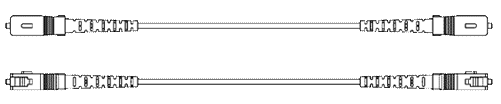

SC PC/APC Patch Cables
Push-pull, key-oriented coupling mechanism which allows highly repeatable, low-loss connections
Simplex, duplex, and multi-fiber assemblies available in standard and custom configurations
Singlemode and Multimode
PC or APC finish
Compliant with Telcordia GR-326-CORE specification
UL94V-O compatible resin housing and optional UL94V-O compatible resin boot is available
"...Originally developed by NTT, the SC connector has a push/pull snap fit. The duplex SC connector uses the same mating profile as the simplex design."
SC/PC Specifications
|
Singlemode (typical) |
Singlemode (maximum) |
Multimode (maximum) |
Insertion Loss |
< 0.15 dB |
< 0.30 dB |
< 0.30 dB |
Return Loss |
> 55 dB |
> 50 dB |
> 25 dB |
Operating Temperature |
-40°C to + 80°C |
-40°C to + 80°C |
-40°C to + 80°C |
SC/APC Specifications
|
Singlemode (maximum) |
Insertion Loss |
< 0.30 dB |
Return Loss |
> 65 dB |
Operating Temperature |
-40°C to + 80°C |
Results included for each serialized assembly |

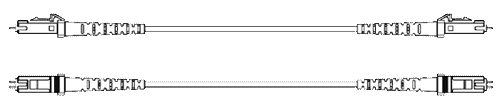

MT-RJ Patch Cables
MT style ferrule with RJ-45 style housing with push-pull coupling mechanism which allows easy disengagement in dense spaces
One ferrule accommodates two fibers
Small Form Factor - Half the size of duplex SC and ST connectors
Duplex assemblies available in standard and custom configurations
Singlemode and Multimode
Compliant with Telcordia GR-1435-CORE specification
"...This connector is radically different than the other connectors shown, in large part, due to the single ferrule that handles two fibers. "
MT-RJ Specifications
|
Singlemode (typical) |
Singlemode (maximum) |
Multimode (maximum) |
Insertion Loss |
< 0.20 dB |
< 0.70 dB |
< 0.70 dB |
Return Loss |
> 45 dB |
> 35 dB |
> 25 dB |
Operating Temperature |
-40°C to + 80°C |
-40°C to + 80°C |
-40°C to + 80°C |
Results included for each serialized assembly |
MTP brand-LC 10 Gig Enterprise Fiber Cables
The Chameleon Patch Cable System is designed specifically to interface with the Chameleon High Volume Cassette Module. The system consists of 2 different color coded 24 fiber MTP brand– LC patch cables. The patent pending patch cable design eliminates the chance of crosstalk at the 72 fiber connection point in the cassette. Featuring a low profile 24 fiber Siamese design along with LC UniBoot connectors, the Chameleon Patch Cable System saves critical space at the server or fiber manager fiber interface.
MTP brand-LC Assembly, Sub Grouped Loose Tube Fiber, 24 Strand, 50/245 Micron, 10 Gig, (2) MTP to (24) LC, Plenum Rated, W/ 2 Foot Breakout on the MTP brand side and 3 foot breakout on the LC Side.
MTP brand-LC Assembly, 12 Strand Enterprise, 10 Gig 50 Micron
"...The patent pending patch cable design eliminates the chance of crosstalk"
MTP brand-LC Assembly, 24 Strand Enterprise, 10 Gig 50 Micron
MTP brand-LC Assembly, Sub Grouped Loose Tube Fiber, 24 Strand, 50/245 Micron, 10 Gig, (2) MTP brand female to (2) MTP brand female, Plenum Rated, W/ 2 foot breakout on the MTP brand side and 3 foot breakout on the LC Side
MTP brand-LC Assembly, 24 Strand Enterprise, 10 Gig 50 Micron
"...Featuring a low profile 24 fiber Siamese design"
MTP brand-LC Assembly, 48 Strand Enterprise, 10 Gig 50 Micron
MTP brand-LC Assembly, Sub Grouped Loose Tube Fiber, 48 Strand, 50/485 Micron, 10 Gig, (4) MTP brand female to (4) MTP brand female, 25 Foot, Plenum Rated, W/ 2 Foot Breakout on the MTP brand side and 3 foot breakout on the LC Side
MTP brand-LC Assembly, 48 Strand Enterprise, 10 Gig 50 Micron
"...the Chameleon Patch Cable System saves critical space at the server or fiber manager fiber interface."
